YJ64
Category
YJ64 Series
Product Details
| 电机特性 Motor Characteristics | |||||||
| • Voltage：100-240V Frequency：50/60Hz | |||||||
| • Insulation Class：A/E/B | |||||||
| • Life-Span: exceed 5000 hours（Ball Bearing） |
|||||||
| • Feature: low noise, stable operation, simple structure |
| 技术参数 Technical Parameters |
| 型号 Model |
尺寸 Dimension |
参考性能 Reference Performance |
|||||||||||
| L1 | L2 | L3 | L4 | 空载转速 No Load Speed （rpm） |
空载功率 No Load Power (W) |
负载转速 Loading Speed（rpm） |
负载功率 Loading Power (W) |
负载转矩 Loading Torque (g.cm) |
|||||
| YJ64-51 | 15~50 | 40~80 | 51 | 200~300 | 2800/3200 | ≤85 | 1400~2600 | ≤100 | 100 | ||||
|

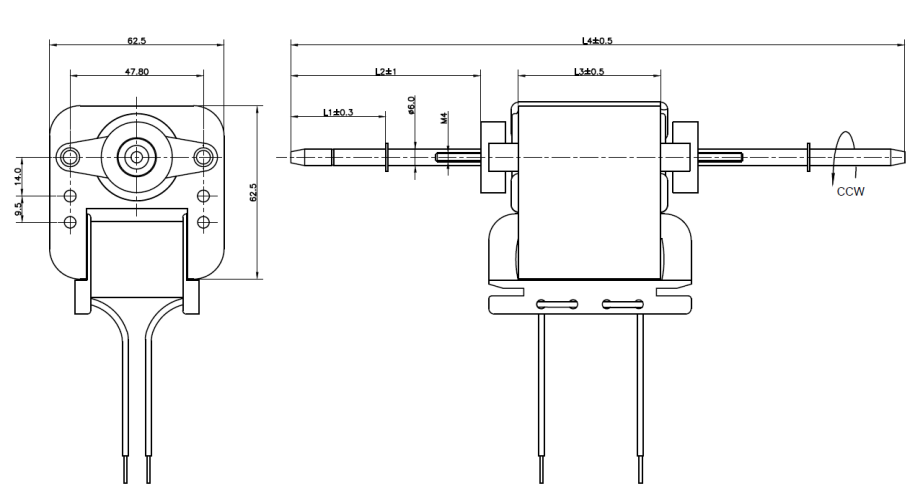

外形尺寸 Outline Dimensions
|

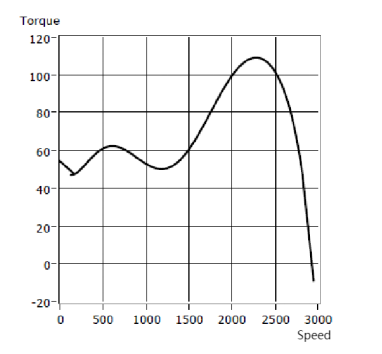

| T-S曲线 T-S Curve | |||||||||||||
| YJ64-51 | |||||||||||||
| 应用领域展示 Application Display |

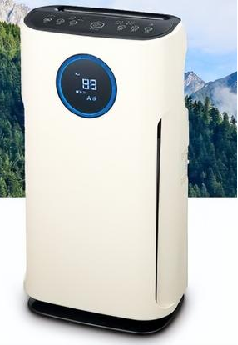

| Air Purifier |
-
