YJ64
Category
YJ64 Series
Product Details
| 电机特性 Motor Characteristic | |||||||
| • Voltage：100-240V Frequency：50/60Hz | |||||||
| • Insulation Class：H/N | |||||||
| • Life-Span: exceed 3000 hours (Sleeve Bearing)； exceed 6000 hours (Ball Bearing) | |||||||
| • Features: low noise, stable operation, simple structure |
| 技术参数 Technical Parameters |
• Below products are representative for reference and can be customized to customer requirements. |
||||||||||||
| 型号 Model |
尺寸Dimension | 参考性能 Reference Performance | |||||||||||
| L1 | L2 | L3 | L4 | 空载转速 No Load Speed （rpm） |
空载功率 No Load Power (W) |
负载转速 Loading Speed（rpm） |
负载功率 Loading Power (W) |
负载转矩 Loading Torque (g.cm) |
|||||
| YJ64-16 | 15~45 | 15.5 | 40.5 | 65.5~110 | 2800/3200 | ≤18 | 900~1700 | ≤25 | 220 | ||||
| YJ64-20 | 15~50 | 20 | 45 | 70~110 | 2800/3200 | ≤22 | 900~1900 | ≤30 | 260 | ||||
| YJ64-25 | 15~45 | 25 | 55 | 75~110 | 2800/3200 | ≤28 | 900~2100 | ≤35 | 330 | ||||

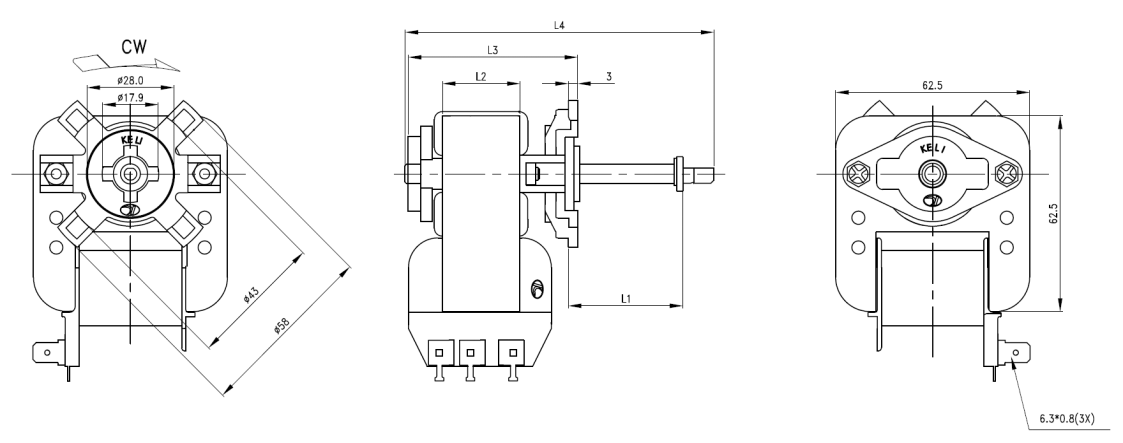

| 外形尺寸 Outline Dimensions |
| P-Q曲线 P-Q Curve |
| YJ64-16 | YJ64-20 | |||||||||||
| YJ64-25 |
| 应用领域展示 Application Display |
| Oven |
-
