YJ63
Category
YJ63 Series
Product Details
| 电机特性 Motor Characteristics | |||||||
| • Voltage：100～240V Frequency：50/60Hz | |||||||
| • Insulation Class：B/F/H | |||||||
| • Life-Span:exceed 3000 hours (Sleeve Bearing); exceed 10000 hours (Ball Bearing) | |||||||
| • Features: low noise,stable operation, simple structure |
| 技术参数 Technical Parameters |
| 电机型号 Model | 尺寸 Dimension | 参考性能 Reference Performance | ||||||||||||
| L1 | L2 | L3 | L4 | L5 | D1 | 最大扬程 Max. lift （cm） |
转速 Speed （rpm） |
功率 Power （W） | 转矩 Torque (mNm) |
|||||
| YJ63-22 | 35~100 | 14 | 22.5 | 15~30 | 80 | 4.62,5.53,6 | 500 | 2500 | 45 | 55 | ||||
| YJ63-30 | 35~100 | 14 | 30.5 | 15~30 | 80 | 4.62,5.53,6 | 650 | 2550 | 65 | 70 | ||||

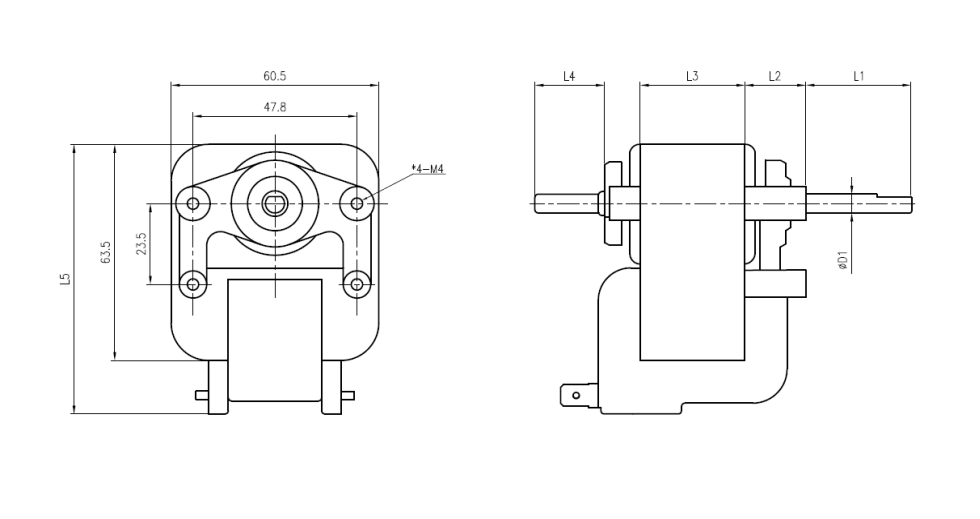

| 外形尺寸 Outline Dimensions |

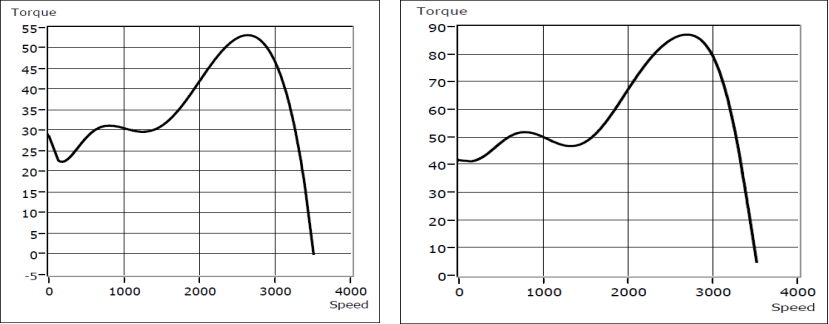

| T-S曲线 T-S Curve | ||||||||||||||
| YJ 63-22 | YJ63-30 | |||||||||||||
| 应用领域展示 Application Display |
| Air Conditioner Drainage Pump |
