YJ72
Category
YJ72 Series
Product Details
| 电机特性 Motor Characteristics | |||||||
| • Voltage：100-240V Frequency：50/60Hz | |||||||
| • Insulation Class：H | |||||||
| • Life-Span: exceed 5000 hours (Sleeve Bearing)；；exceed 10000 hours (Ball Bearing) | |||||||
| • Features: low noise, high air flow,stable operation, simple structure |
| 技术参数 Technical Parameters |
| 型号 Model |
尺寸Dimension | 参考性能 Reference Performance | ||||||||||||
| L1 | L2 | L3 | L4 | 空载转速 No Load Speed （rpm） |
空载功率 No Load Power (W) |
负载转速 Loading Speed（rpm） |
负载功率 Loading Power (W) |
负载转矩 Loading Torque (g.cm) |
||||||
| YJ72-14 | 13.5 | 65~90 | 33.5 | 28~50 | 2800/3200 | ≤27 | 900~1800 | ≤35 | 250 | |||||
| YJ72-18 | 18 | 70~90 | 38 | 75~110 | 2800/3200 | ≤36 | 1200~2200 | ≤45 | 330 | |||||

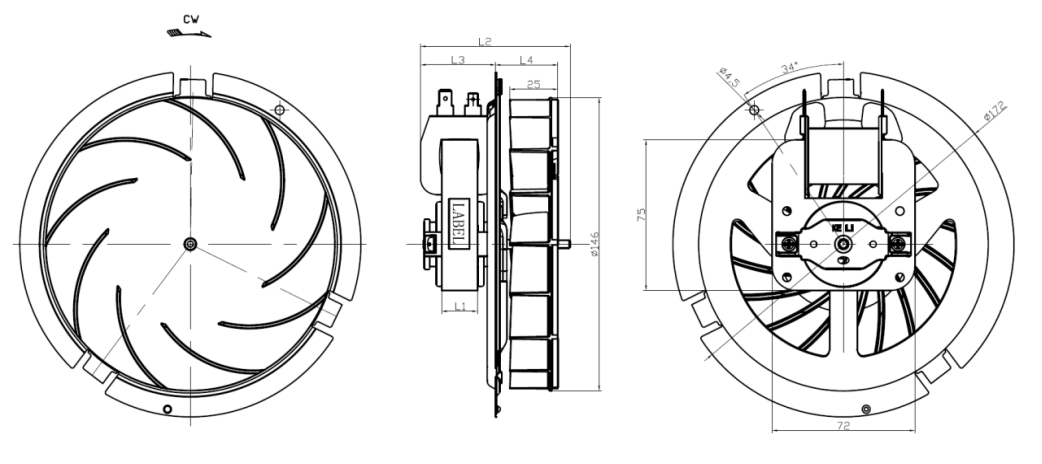

| 外形尺寸 Outline Dimensions |

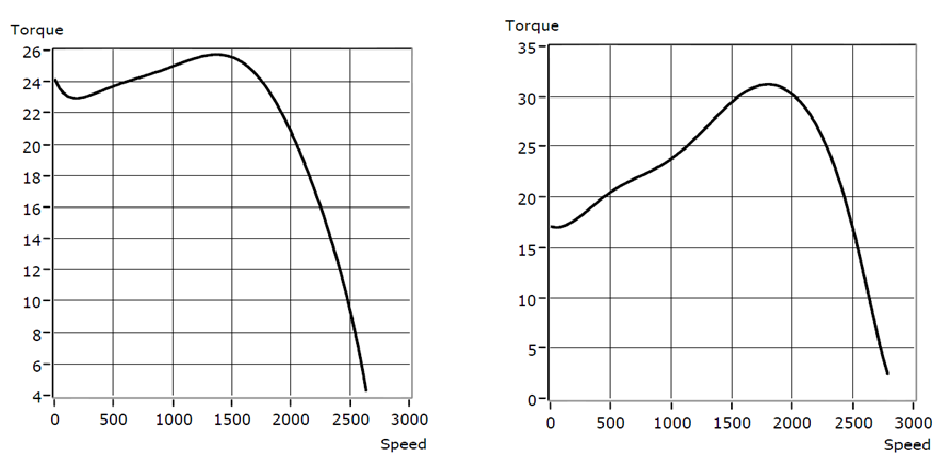

| T-S曲线 T-S curve |
| YJ72-14 | YJ72-18 | ||||||||||||
| 应用领域展示 Application Display |
| Oven |
