YJ64
Category
YJ64 Series
Product Details
| 电机特性 Motor Characteristics | |||||||||||||
| • Voltage：100-240V Frequency：50/60Hz | |||||||||||||
| • Insulation Class：B/F/H | |||||||||||||
| • Life-Span: exceed 1500 hours | |||||||||||||
| • Feature: easy installation, high compatibility to customer appliance. | |||||||||||||
| 技术参数 Technical Parameters | • Below products are representative for reference and can be customized to customer requirements. | ||||||||||||
| 型号 Model |
尺寸 Dimension |
参考性能 Reference Performance |
|||||||||||
| L1 | L2 | L3 | L4 | 空载转速 No Load Speed （rpm） |
空载功率 No Load Power (W) |
负载转速 Loading Speed（rpm） |
负载功率 Loading Power (W) |
负载转矩 Loading Torque (g.cm) |
|||||
| YJ64-20 | 20 | 10~45 | 25~50 | 75~165 | 2800/3200 | ≤25 | 1000~2200 | ≤45 | 350 | ||||
| YJ64-25 | 25 | 10~45 | 25~50 | 80~170 | 2800/3200 | ≤40 | 1000~2300 | ≤70 | 450 | ||||
| YJ64-30 | 30 | 10~45 | 25~50 | 85~175 | 2800/3200 | ≤50 | 1100~2350 | ≤90 | 550 | ||||

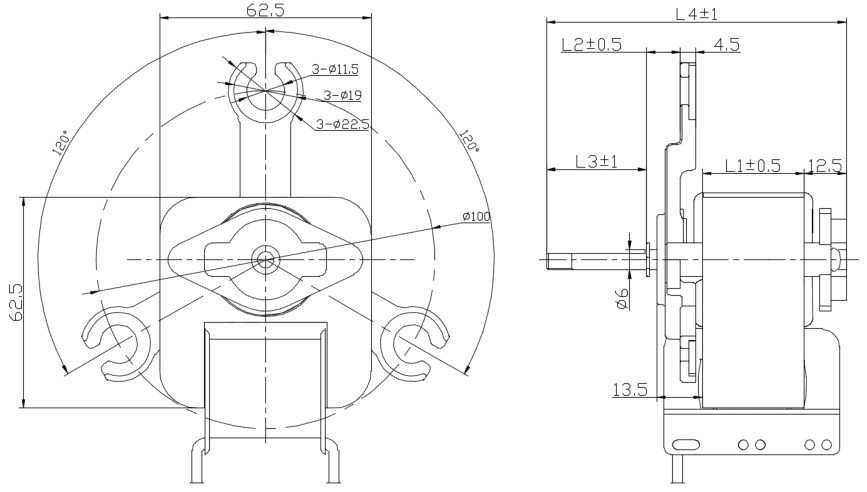

| 外形尺寸 Outline Dimensions | |||||||||||||

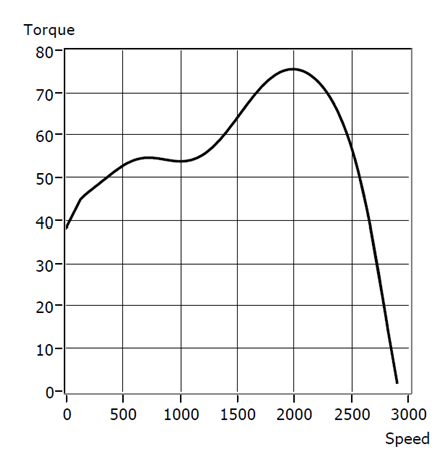

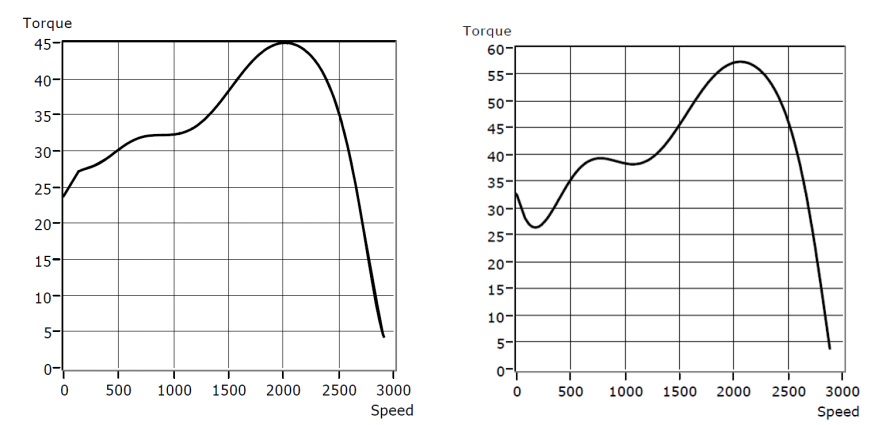

| T-S曲线 T-S Curve | |||||||||||
| YJ64-20 | YJ64-25 |
|
|||||||||
|
YJ64-30
|
| 应用领域展示 Application Display | ||||||||||||||
|

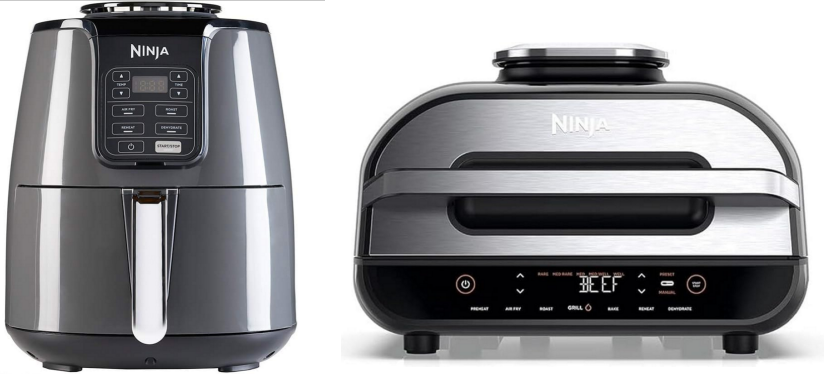

Air Fryer
|
||||||||||||||
