YJ62
Category
YJ62 Series
Product Details
| 电机特性 Motor Characteristics | |||||||
| • Voltage：100-240V Frequency：50/60Hz | |||||||
| • Insulation Class：A/E/B/F/H | |||||||
| • Life-Span: exceed 3000 hours（Sleeve Bearing） |
|||||||
| • Feature: low noise, stable operation, simple structure |
| 技术参数 Technical Parameters |
| 型号 Model |
尺寸 Dimension |
参考性能 Reference Performance |
||||||||||||
| L1 | L2 | 空载转速 No Load Speed （rpm） |
空载功率 No Load Power (W) |
负载转速 Loading Speed（rpm） |
负载功率 Loading Power (W) |
负载转矩 Loading Torque (g.cm) |
||||||||
| YJ62-09 | 10~60 | Φ2.5 OrΦ3.17OrΦ4Φ6 | 2800/3200 | ≤12 | 1200~2600 | ≤15 | 100 | |||||||

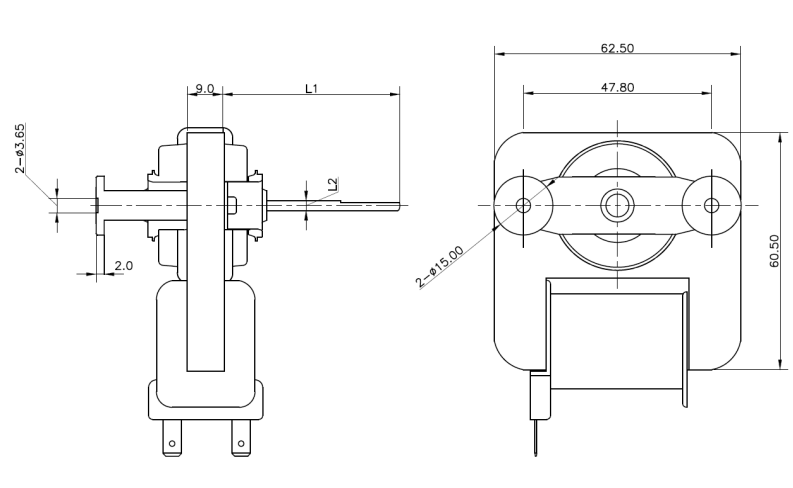

| 外形尺寸 Outline Dimensions |

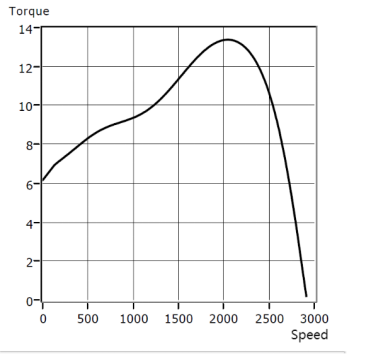

| T-S曲线 T-S Curve |
| YJ62-9 |
| 应用领域展示 Application Display |
| Microwave Oven |
