YJ61
Category
YJ61 Series
Product Details
| 电机特性 Motor Characteristics | |||||||
| • Voltage：100-240V Frequency：50/60Hz | |||||||
| • Insulation Class：H/N | |||||||
| • Life-Span: exceed 3000 hours (Sleeve Bearing) ； exceed 6000 hours (Ball Bearing) | |||||||
| • Features: low noise, stable operation, simple structure |
| 技术参数 Technical Parameters |
| 型号 Model |
尺寸Dimension | 参考性能 Reference Performance | ||||||||||||
| L1 | L2 | L3 | L4 | 空载转速 No Load Speed （rpm） |
空载功率 No Load Power (W) |
负载转速 Loading Speed（rpm） |
负载功率 Loading Power (W) |
负载转矩 Loading Torque (g.cm) |
||||||
| YJ61-16 | 15~45 | 15.5 | 55 | 90~120 | 2600/3200 | ≤21 | 900~1600 | ≤30 | 220 | |||||
| YJ61-20 | 15~40 | 20.5 | 60 | 95~120 | 2600/3200 | ≤25 | 900~1800 | ≤35 | 260 | |||||

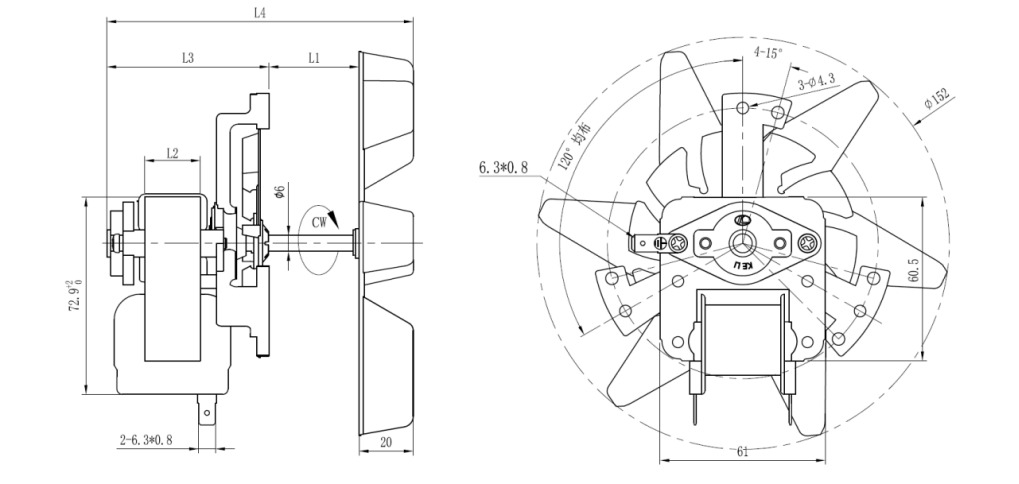

| 外形尺寸 Outline Dimensions |

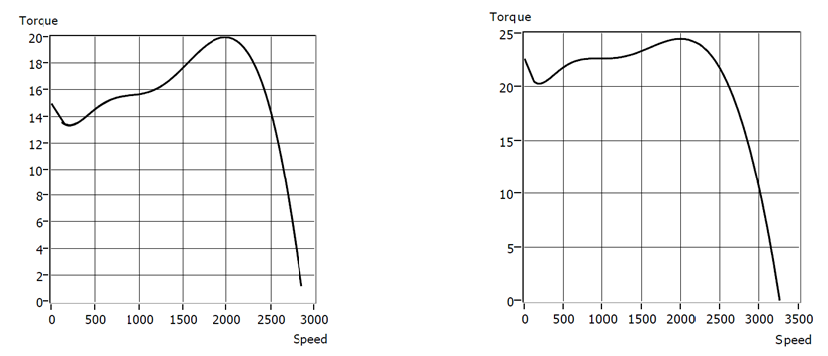

| T-S曲线 T-S Curve |
| YJ61-16 | YJ61-20 | ||||||||||||||||||||||||||
| 应用领域展示 Application Display |
Oven
