Keli Motor Group Search
.
WS58-05E
Category
WS58 Series
Product Details
| 电机特性 Motor Characteristics | |||||||
| • Voltage：12VDC | |||||||
| • Insulation Class：B | |||||||
| • Life-Span: exceed 10000 hours（Sleeve Bearing） | |||||||
| • Features: low power consumption, PWM speed control,low noise,rotation detect (RD) or FG speed feedback , locked-rotor protection, over current protection, stable operation, simple structure |
| 技术参数 Technical Parameters |
| 型号 Model |
参考性能 Reference Performance | |||||||||||
| 空载转速 No Load Speed（rpm） |
空载功率 No Load Power (W) |
负载转速 Loading Speed（rpm） |
负载功率 Loading Power (W) |
|||||||||
| WS58-05E | 2650 | ≤0.8 | 2300 | ≤3 | ||||||||

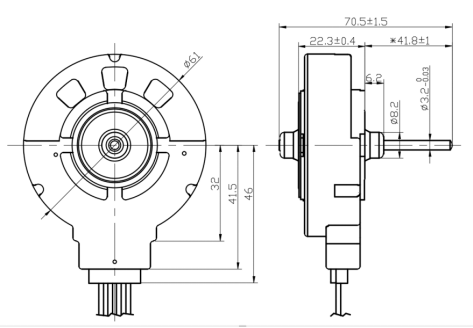

| 外形尺寸 Outline Dimensions |
|
应用领域展示 Application Display |
|||||||||||||||
| Refrigerator |
