WS35-10E
Category
WS35 Series
Product Details
| 电机特性 Motor Characteristics | ||||||
| • Voltage：12~24VDC | ||||||
| • Insulation Class：B | ||||||
| • Life-Span: exceed 10000 hours（Ball Bearing） | ||||||
| • Features: low power consumption, PWM speed control,low noise,rotation detect (RD) or FG speed feedback , locked-rotor protection, over current protection, stable operation, simple structure |
| 技术参数 Technical Parameters |
| 型号 Model |
参考性能 Reference Performance | |||||||||
| 空载转速 No Load Speed（rpm） |
空载功率 No Load Power (W) |
负载转速 Loading Speed（rpm） |
负载功率 Loading Power (W) |
|||||||
| WS35-10E | 3600 | ≦0.72 | 2500 | ≦9 | ||||||

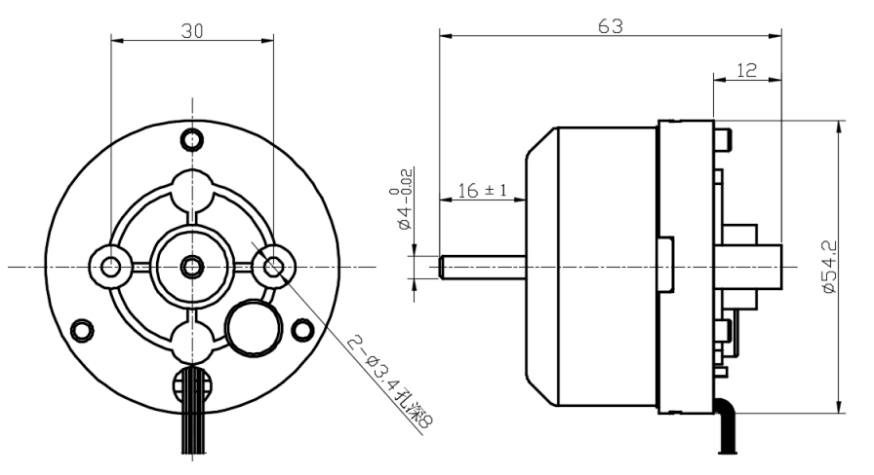

| 外形尺寸 Outline Dimensions |
| 应用领域展示 Application Display |
| Exhaust Fan |
