GL65
Category
GL65 Series
Product Details
| 电机特性 Motor Characteristics | ||||||||||||||
| • Voltage：100-240V Frequency：50/60Hz | ||||||||||||||
| • Insulation Class：A/E/B/F/H/N | ||||||||||||||
| • Life-Span: 10 years (optional design to meet 20 years life available) | ||||||||||||||
| • Feature: low noise, high air flow,stable operation, simple structure | ||||||||||||||
| 技术参数 Technical Parameters | • Below products are representative for reference and can be customized to customer requirements. | |||||||||||||
| 型号 Model |
尺寸 Dimension |
参考性能 Reference Performance |
||||||||||||
| L1 | L2 | L3 | L4 | L5 | D1 | 转速 Speed （rpm） |
最大风量 Max. Air Flow （m³/h） |
最大风压 Max.Air Pressure （Pa） |
功率 Power （W） |
|||||
| GL65×240 | 5 | 212 | 196 | 240 | 20~40 | 2.3 | 1350 | 200 | 55 | ≤60 | ||||
| GL65×300 | 5 | / | / | 300 | 20~40 | 2.3 | 1200 | 250 | 70 | ≤70 | ||||

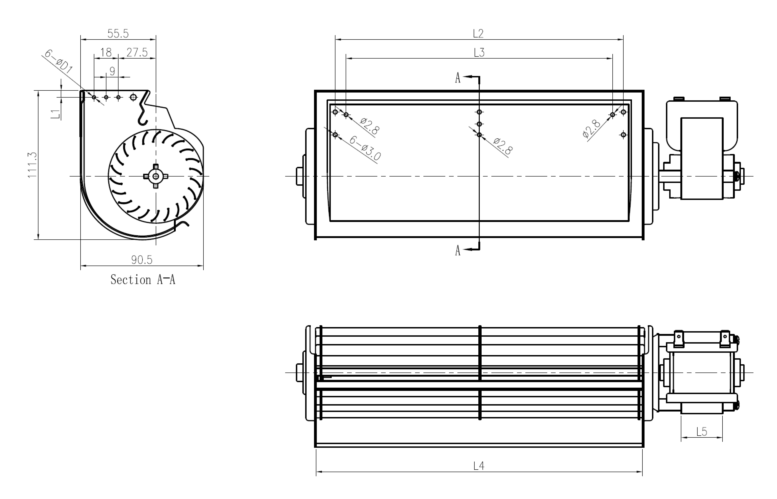

| 外形尺寸 Outline Dimensions | ||||||||||||||

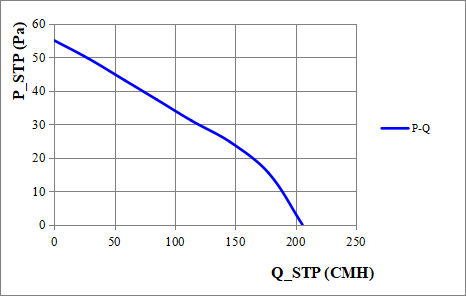

| P-Q曲线 P-Q courve | |||||
| GL65×240 | |||||
| 应用领域展示 Application Display |
| Oven | Air Conditioner | Ventless Fireplace | Air Curtain | |||||||||||
| Refrigerator | Heater Fan | Wine Chiller |
