GL60 Series
Product Details
| 电机特性 Motor Characteristics | |||||
| • Voltage：100-240V 50/60Hz | |||||
| • Insulation Class：A/E/B | |||||
| • Life-Span: 10 years (optional design to meet 20 years life available) | |||||
| • Features: low power consumption, single speed, low noise, locked-rotor protection, over current protection, stable operation, simple structure | |||||
| 技术参数 Technical Parameters |
| 风机型号Model | 尺寸 Dimension | 参考性能 Reference Performance | |||||||||
| L1 | L2 | L3 | L4 | D1 | D2 | X | 转速 Speed （rpm） | 最大风量 Max. Air Flow （m³/h） |
最大风压 Max. Air Pressure （Pa） |
功率 Power（W） | |
| GL60×120 | 3.4 or 5.0 | 121 | 95.5 | / | 2.3 or 3.2 | 3.0 | 4 | 1900 | 95 | 60 | ≤7 |
| GL60×160 | 3.4 or 5.0 | 156 | 110 | 84.6 | 2.3 or 3.2 | 3.4 | 9 | 1900 | 125 | 60 | ≤8 |
| GL60×180 | 3.4 or 5.0 | 181 | 154 | 128.6 | 2.3 or 3.2 | 3.2 or 3.5 | 9 | 2250 | 180 | 80 | ≤12 |
| GL60×183.7 | 3.4 or 5.0 | 183.7 | 154 | 128.6 | 2.3 or 3.2 | 3.2 or 3.5 | 9 | 2250 | 180 | 80 | ≤12 |
| GL60×200 | 3.4 or 5.0 | 204.7 | 154 | 128.6 | 2.3 or 3.2 | 3.5 | 9 | 1600 | 140 | 55 | ≤10 |
| GL60×240 | 3.4 or 5.0 | 242 | 212 | 186.6 | 2.3 or 3.2 | 3.5 | 9 | 1600 | 170 | 55 | ≤12 |
| GL60×270 | 3.4 or 5.0 | 272 | 244 | 218.6 | 2.3 or 3.2 | 3.5 | 9 | 1600 | 200 | 55 | ≤13 |
| GL60×300 | 3.4 or 5.0 | 303 | 272 | 246.6 | 2.3 or 3.2 | 3.5 | 9 | 1600 | 230 | 55 | ≤14 |
| GL60×360 | 3.4 or 5.0 | 366 | 312 | 286.6 | 2.3 or 3.2 | 3.5 | 9 | 1600 | 300 | 55 | ≤16 |
|

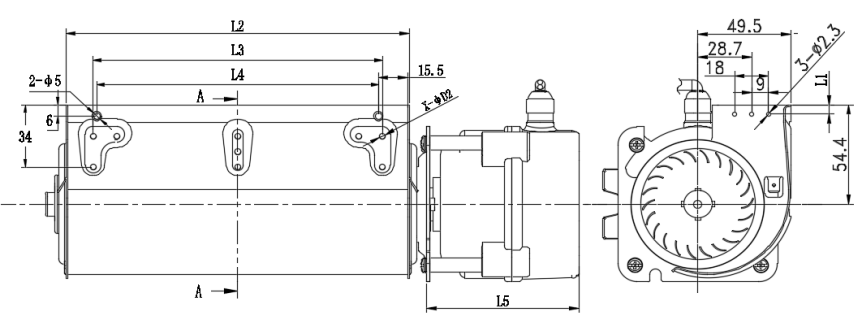

外形尺寸 Outline Dimensions
|

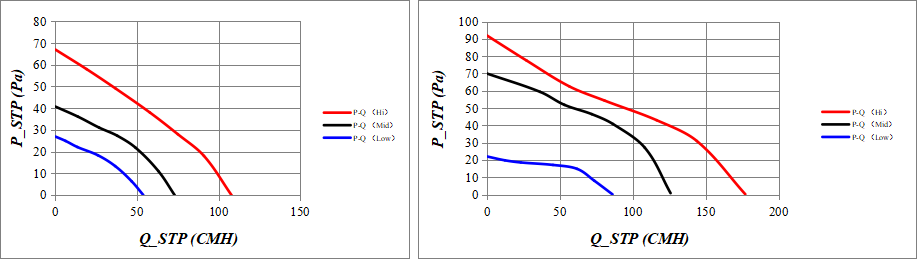

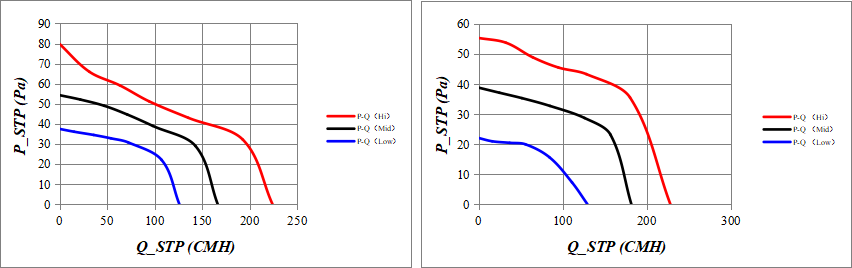

| P-Q曲线 P-Q curve |
| GL60×120 | GL60×180 | |||||||||||||
| GL60×240 | GL60×300 | |||||||||||||
| 应用领域展示 Application Display |
Oven Air Conditioner Ventless Fireplace Clothes Dryer
| Refrigerator | Heater Fan | Wine Chiller | |||||||
