GL45
Category
GL45 Series
Product Details
| 电机特性 Motor Characteristics | |||||
| • Voltage：100-240V Frequency：50/60Hz | |||||
| • Insulation Class：A/E/B/F/H/N | |||||
| • Life-Span: 10 years(optional design to meet 20 years life available) | |||||
| • Feature: low noise, high air flow, stable operation, simple structure | |||||
| 技术参数 Technical Parameters |
| 型号 Model |
尺寸 Dimension |
参考性能 Reference Performance |
|||||||||||
| L1 | L2 | L3 | L4 | L5 | L6 | D1 | D2 | D3 | 转速 Speed （rpm） |
最大风量 Max. Air Flow （m³/h） |
最大风压 Max. Air Pressure （Pa） |
功率 Power （W） |
|
| GL45×125 | 10~ 25.5 | 125 | / | / | 12 | 3.4 or 5.0 | / | / | 2.3 or 3.2 | 1600~2900 | 110 | 70 | ≤25 |
| GL45×140 | 10~ 25.5 | 141 | 94 | 68.6 | 5.5 | 3.4 or 5.0 | 3.5 | 3.5 | 2.3 or 3.2 | 1400~2900 | 125 | 70 | ≤30 |
| GL45×160 | 10~ 25.5 | 162 | 110 | 84.6 | 5.5 | 3.4 or 5.0 | 3.2 | 3.2 | 2.3 or 3.2 | 1200~2900 | 140 | 70 | ≤35 |
| GL45×180 | 10~ 25.5 | 180/181/182/188 | 154 | 138 | 5.5 or 12 | 3.4 or 5.0 | 2.8 or 3.5 | 3.0 or 3.5 | 2.3 or 3.2 | 1200~2900 | 170 | 80 | ≤45 |
| GL45×200 | 10~ 25.5 | 200 | 154 | 128 | 5.5 | 3.4 or 5.0 | 3.5 | 3.5 | 2.3 or 3.2 | 1200~2900 | 190 | 80 | ≤45 |
| GL45×240 | 10~ 30.5 | 242 | 183.7 | 154 | 5.5 or 12 | 3.4 or 5.0 | 2.8 or 3.5 | 3.0 or 3.5 | 2.3 or 3.2 | 1000~2900 | 230 | 80 | ≤50 |

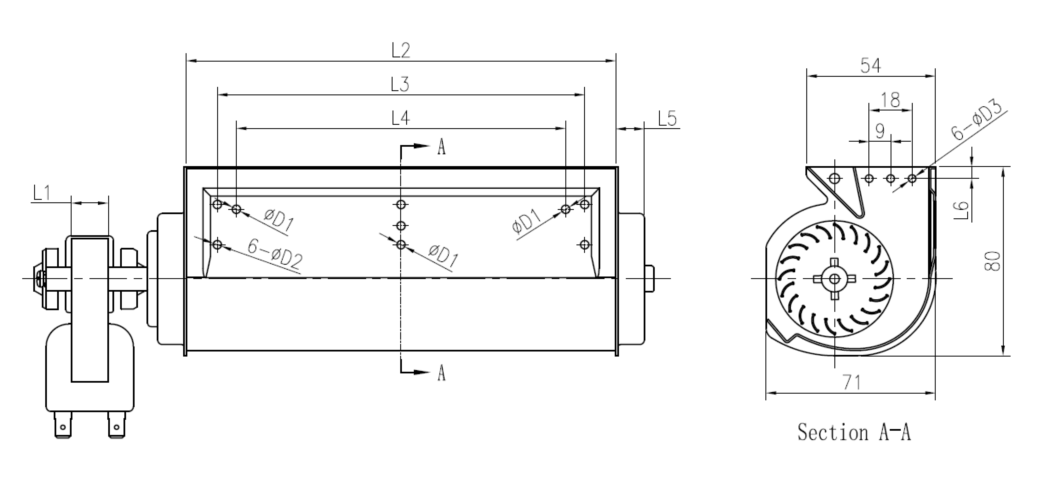

| 外形尺寸 Outline Dimensions |
| P-Q曲线 P-Q Curve |

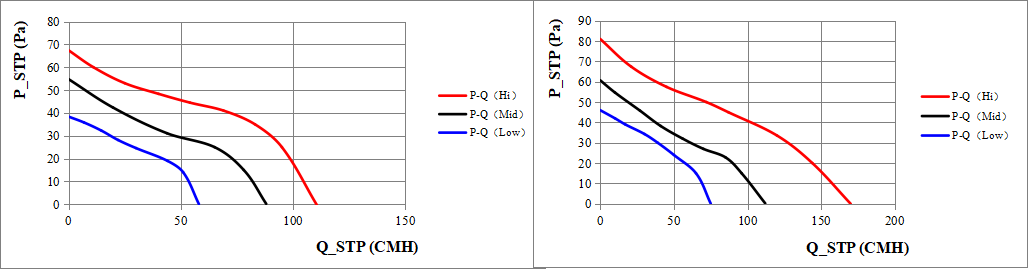

| GL45×125 | GL45×180 | |||||||||||||||

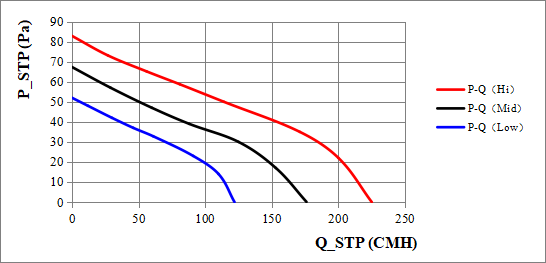

| GL45×240 |
| 应用领域展示 Application Display |
Oven Air Conditioner Ventless Fireplace Clothes Dryer
| Refrigerator | Heater Fan | Wine Chiller | |||||||
