BJ20D
Category
BJ20D
Product Details
电机特性
技术参数
| 电机型号 Mode | 极性 Polar | 电机长度 Motor Length |
每相电阻Resistance | 每相电感 Inductance | 转动惯量 Rotor Inertia | 静力矩 Holding Torque |
额定电流 Rated Current |
| mm | Ω | mH | gcm² | mNm Min. | A | ||
| BJ20D15-Y1V01 | 双极（Bipolar） | 28 | 24 | 8 | 2.5 | 13 | 0.2 |
| BJ20D19-Y1V01 | 33 | 5 | 2.8 | 2.9 | 30 | 0.4 | |
| BJ20D19-Y2V01 | 6 | 2.2 | 2.9 | 18 | 0.6 | ||
| BJ20D25-Y1V01 | 38 | 10 | 5.5 | 3.3 | 40 | 0.6 | |
| BJ20D32-Y1V01 | 45 | 7 | 3.4 | 3.8 | 50 | 0.4 | |
| BJ20D32-Y2V01 | 12 | 6.8 | 3.8 | 44 | 0.6 |
Dimensions and Motor Wiring Diagram

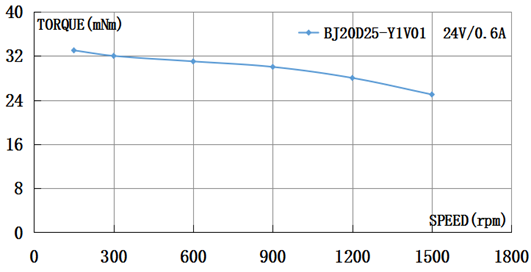

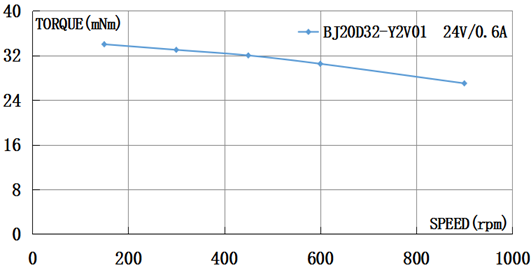

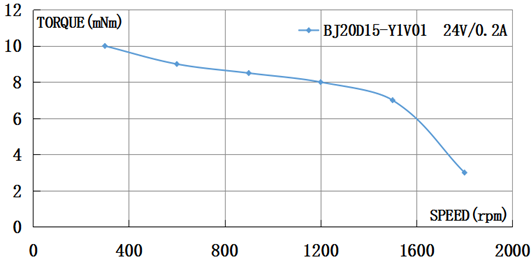

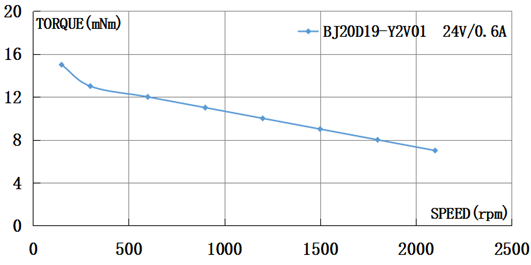

Speed-Torque Curve
Application Scenarios
