BJ60F
Category
BJ60F
Product Details
Motor Features
• 3 Phase motor
• Step angle1.2 degree
• Large torque
• Low noise
• Smooth operation
Technical Parameter
| 电机型号 Mode | 极性 Polar | 电机长度 Motor Length |
每相电阻Resistance | 每相电感 Inductance | 转动惯量 Rotor Inertia | 静力矩 Holding Torque |
额定电流 Rated Current |
| mm | Ω | mH | gcm² | Nm Min. | A | ||
| BJ60F25-Y1V01 | 双极（Bipolar） | 47 | 6.3 | 9.7 | 275 | 0.6 | 1.5 |
| BJ60F32-Y1V01 | 54 | 4.1 | 9.5 | 380 | 0.8 | 1.5 | |
| BJ60F54-Y1V01 | 76 | 4.4 | 10 | 670 | 1.1 | 1.5 |

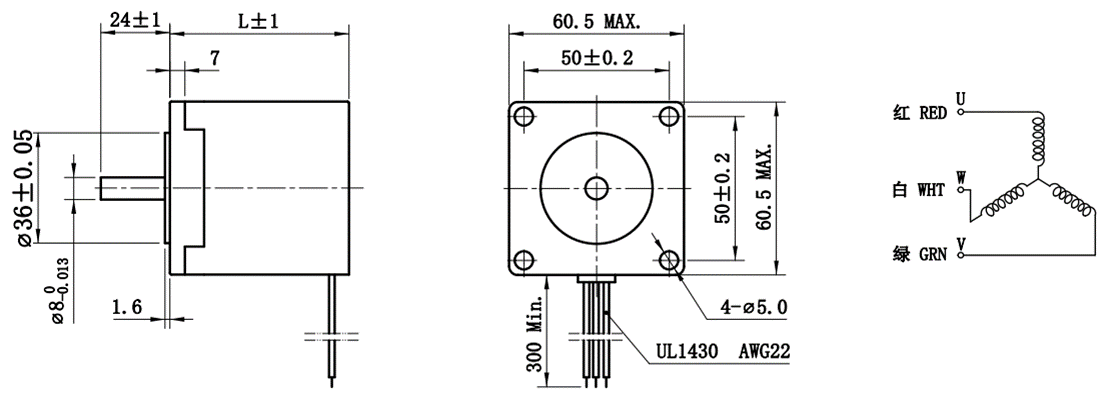

Dimensions and Motor Wiring Diagram

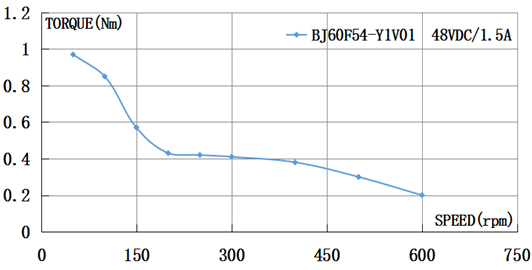

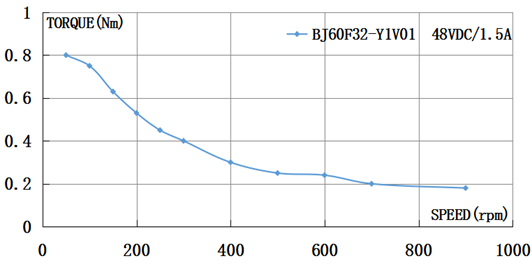

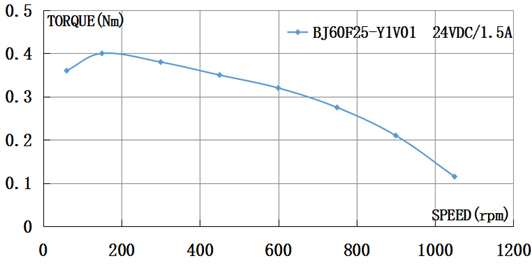

Speed-Torque Curve
Application Scenarios
Security Monitoring Industrial Automation Equipment Medical Equipment
