BJ60D-E
Category
BJ60D
Product Details
Motor Features
• 2 Phase motor
• Step angle1.8°
• Large torque
• Low noise
• Smooth operation
Technical Parameter
| 电机型号 Mode | 极性 Polar | 电机长度 Motor Length |
每相电阻Resistance | 每相电感 Inductance | 转动惯量 Rotor Inertia | 静力矩 Holding Torque |
额定电流 Rated Current |
| mm | Ω | mH | gcm² | Nm Min. | A | ||
| BJ60D46-Y1W01E | 双极（Bipolar） | 90 | 0.33 | 1.05 | 570 | 2.2 | 5 |
| BJ60D63-Y1W01E | 108 | 0.46 | 2 | 690 | 3 | 5 |

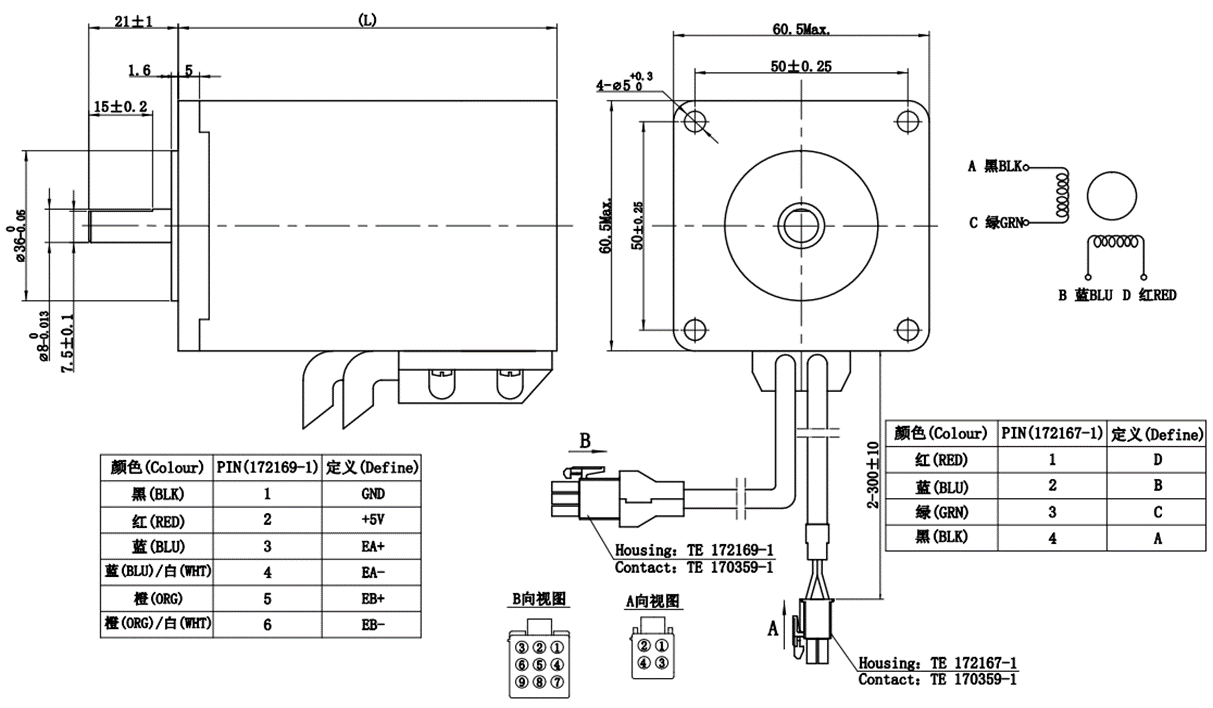

Dimensions and Motor Wiring Diagram

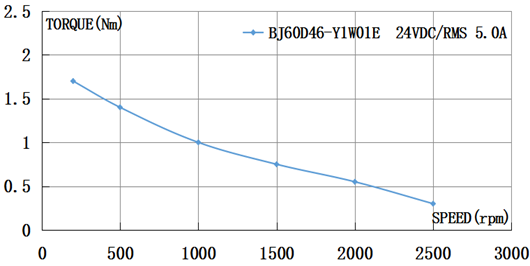

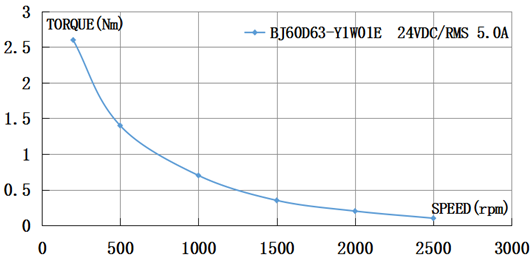

Speed-Torque Courve
Application Scenarios
Textile Robots Laser Engraving Machine Industrial Automation Equipment
